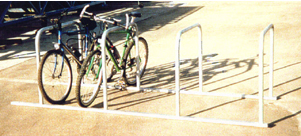

TUBULAR STAND CYCLE RACKS
|
|
|
|
|
|
Strong welded steel frame with tubular steel upright stands. Weatherproof galvanised finish.
Racks are available with 3, 4 or 5 tubular stands, each providing lean-to support and security for two cycles, one on either side.
Standard/Adult Bike Racks; Overall width 1000mm x Overall height 925mm stands at 850mm centres. Model 1: stands without crossbraces, Model 2: stands with diagonal crossbraces provide additional chaining points, e.g. for bikes without crossbars.
Junior Bike Racks; Overall width 600mm x Overall height 725mm stands at 700mm centres.
Racks are freestanding in their own right but have pre-drilled tabs for bolting down if required.
In addition and on top of standard galvanised finish, racks can be powder coated in a choice of colours to suit customer’s environment at extra cost.
| Number of Cycles supported |
6 |
8 |
10 |
| Number of Stands per rack |
3 |
4 |
5 |
| Standard/Adult rack Overall lengthmm |
1855 |
2705 |
3550 |
| Reference, Standard/Adult rack Model 1 |
20070 |
20072 |
20074 |
| Reference, Standard/Adult rack Model 2 |
20090 |
20092 |
20094 |
| Junior rack Overall lengthmm |
1645 |
2390 |
3130 |
| Reference, Junior rack |
20100 |
20102 |
20104 |
|
|
|
|
|
|
|
