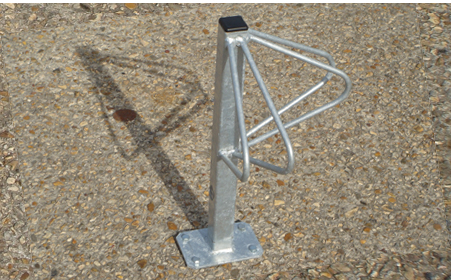

POST MOUNTED CYCLE HOLDERS ~ Single or Double sided
Post Mounted Cycle Bike Bicycke Holders

GROUND FIXED RACKS FOR 1 OR 2 BIKES

Holders will support both standard and mountain bikes.

U shaped brackets mounted at 90° for holding front or rear bicycle wheel in upright position.

Welded steel construction, weatherproof galvanised finish.

Choice of either base plates for bolting down surface fixing or longer legs with bottom stop for concreting into ground/submerged fixing. No price difference.

Metric/Imperial Conversion Table

M'metres
mm		 C'metres
cm		 Metres
m		 Inches
"		 Feet &
Inches
' ""
100 10 0.10 4¼ 0' 4¼"
275 28 0.28 11 0' 11"
400 40 0.40 15¾ 1' 3¾"
485 49 0.49 19¼ 1' 7¼"

Cycle Post Single

SINGLE

Type Single
No. of Bikes Stored 1
Fitted Height 485mm
Depth 275mm
Width 100mm
Reference 70001-2
Cycle Post Two Sided

DOUBLE, FACE TO FACE

Type Double, Face to Face
No. of Bikes Stored 2
Fitted Height 485mm
Depth 400mm
Width 100mm
Reference 70003-4
Cycle Post Two Sided Ninety Degrees

DOUBLE, RIGHT ANGLE

Type Double, Right Angle
No. of Bikes Stored 2
Fitted Height 485mm
Depth 275mm
Width 275mm
Reference 70005-6Í
