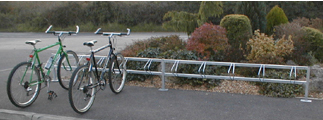

SINGLE SIDED FLOOR MOUNTED CYCLE RACKS
|
|
|
|
|
|
Single Sided Starter and Extension Racks hold 3, 4, 5 or 6 cycles.
Welded steel construction. Weatherproof galvanised finish.
Modular System. Cost effective Add-on extensions with leg at one end only, other end simply bolts to a starter rack. Fewer ground fixing points saves installation time and expense and rack cost.
All legs fitted with either base plates for bolting down as a surface fixing or longer legs with bottom stop plates for concreting into the ground as a submerged fixing, no price difference.
Cycle holders are universal for standard and mountain bikes and fixed at 450mm centres. Choice of holders fixed at 90° or 45° (holders at 45° position cycles in herring-bone fashion, no price difference.
Overall height when fitted: 500mm. Overall depth 270mm.
|
Single Sided Starter Racks |
| No of Cycles Stored |
3 |
4 |
5 |
6 |
| Overall Widthmm |
1350 |
1800 |
2250 |
2700 |
| Reference |
30204 |
30100 |
30140 |
30180 |
|
Single Sided Extension Racks |
| No of Cycles Stored |
3 |
4 |
5 |
6 |
| Overall Widthmm |
1350 |
1800 |
2250 |
2700 |
| Reference |
30210 |
30106 |
30146 |
30186 |
|
|
|
|
|
|
|
