Cycle hoops provides lean-to support and security for two bikes, one on either side.
Strong Sheffield style bike hoops, 'n' frame tubular construction providing support and security for lean-to cycle applications.

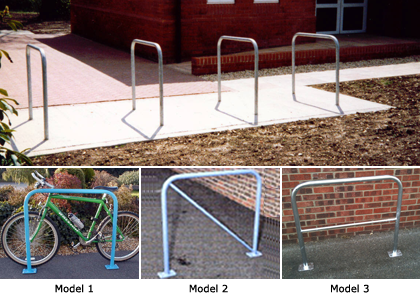

Model 1 bike stand is a simple 'n' frame.
Model 2 cycle stand with diagonal crossbrace and Model 3 cycle stand with horizontal crossbrace also gives support for smaller bikes and provides chaining points for bikes without crossbars.
All models of bicycle hoop available with either base plates for bolting down as a surface fixing or longer legs with bottom stop plates for concreting into the ground as a submerged fixing; - no price difference.
Choice of finishes: weatherproof hot dipped galvanised or bicycle stands can have an additional powder coat finish in a choice of colours to suit the customer's environment.
|
|
|
|
Model 1 |
Model 2 |
Model 3 |
| Crossbrace |
- |
Diagonal |
Horizontal |
| Overall Height above ground mm |
900 |
900 |
900 |
| Overall Widthmm |
1000 |
1000 |
1000 |
| Reference, Galvanised finish |
20001-2 |
20003-4 |
200017-18 |
| Reference, Galvanised + powder coating |
20005-6 |
20007-8 |
200019-20 |
|
|
|
|
|
|
|
|
|
|
