Cantilever shelters for cycles and/or motorcycles or as a covered storage area for varied use.
Designed to a modular construction, very strong robust structure. The system comprises of standard and add on extension units used as single or double sided entry relevant to location.
SPECIFICATION:
100 x 50mm rectangular hollow section. Roof panels are supported on 50 x 50 purlins. Roof panels are polyester coated box profile steel in a colour finish or clear external grade UV protected polycarbonate. Galvanised frames and purlins, an additional powder coated finish in a choice of colours is optional.
Frames are either predrilled base plates for bolting to the ground or extended uprights with stop plate for concreting into ground.
Shelters available in various lengths. Standard overall height at highest point 2.14 metre and overall front to rear depth is 2.07 metres. 8 standard lengths from 2.1 to 9.3 metres.
Gullwing shelters have the roof panels sloping to the centre (as drawing) with guttering & down-pipes for rainwater to run off.

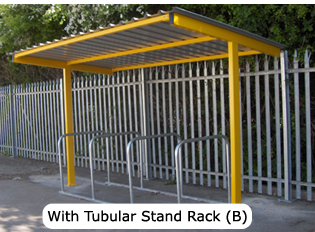

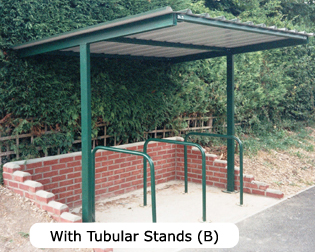

The indicated no. of cycles stored in the table below is based on (A) free standing racks and (B) tubular stands or tubular stand racks –
|
|
|
