Home >> Floor Mounted Racks & Posts >> Semi Vertical Cycle Racks

SEMI VERTICAL CYCLE RACKS

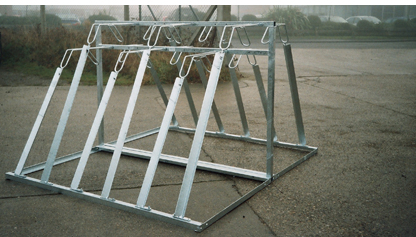

semi vertical cycle racks

Single Sided

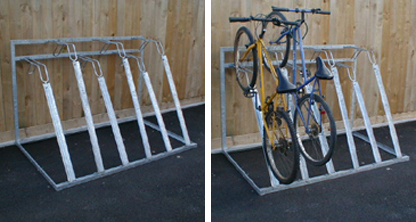

semi vertical cycle racks

Double Sided

MINIMUM FLOOR AREA, IDEAL FOR CONFINED SPACES.
CYCLE RAILS SUITABLE FOR BOTH STANDARD AND MOUNTAIN BIKES.

Easy to position cycles in rack using run-up trough.

Front wheel is ‘captured’ until user lifts cycle out, thus minimising risk of accidentally dislodging cycles.

Welded steel construction, weatherproof galvanised finish.

Base and rear frame predrilled for fixing to ground and/or wall.

Cycle rails arranged in high/low positions at 300mm centres to minimise rack width.

Single sided racks hold 3, 4, 5, and 6 cycle capacities.

Double sided racks hold 2 rows of cycles meeting at the apex in centre holding 6, 8, 10, or 12 cycles.

Supplied in knock-down format for on site assembly.


Single Sided Double Sided
No of Cycles Stored 3 4 5 6 6 8 10 12
Rack Height mm 1245 1245
Rack frame Depth mm 1067 2134
Rack Width mm 900 1200 1500 1800 900 1200 1500 1800
Rack Reference 40077-8 40075 40072-3 40070 400878 40085 400823 40080

Please note: these racks are unsuitable for cycles with full mudguards but will accept small splash guards front and / or rear
